Spiral disc rollers

Structured spiral-disc schedules retain the catalogue belt widths, tube and rubber diameters, disc dimensions, counts and B/C/D dimensions.

Products

Technical data

Spiral-disc roller configurations from the Kırtaş catalog.

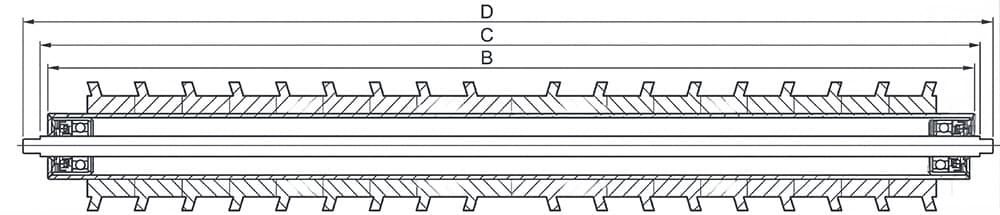

Spiral disc arrangement

Spiral disc arrangement
Belt width (B)	Tube Ø D	Rubber outer diameter	Disc dimension	Number of discs	B	C	D
300	60	108	6010840	8	360	366	386
300	89	133	6013345	8	360	366	386
400	60	108	6010840	12	475	508	540
400	89	133	6013345	10	475	508	540
500	60	108	6013340	14	575	608	640
500	89	133	8913345	12	575	608	640
650	60	108	6010840	18	725	758	790
	89	133	8913345	16
	108	159	10815940	18
800	60	108	6010840	22	875	908	940
	89	133	8913345	20
	108	159	10815940	22
1000	60	108	6010840	28	1115	1148	1180
	89	133	8913345	24
	108	159	10815940	28
1200	60	108	6010840	34	1315	1348	1380
	89	133	8913345	30
	108	159	10815940	34
1400	60	108	6010840	38	1515	1548	1580
	89	133	8913345	34
	108	159	10815940	38
1600	89	133	8913345	40	1715	1748	1780
1600	108	159	10815940	44	1715	1748	1780

Standard DIN 22112-2
