Rubber disc rollers

Structured return-disc schedules retain the catalogue belt widths, tube and rubber diameters, disc dimensions, spacer bushes, and counts.

Products

Technical data

Return-disc roller configurations from the Kırtaş catalog.

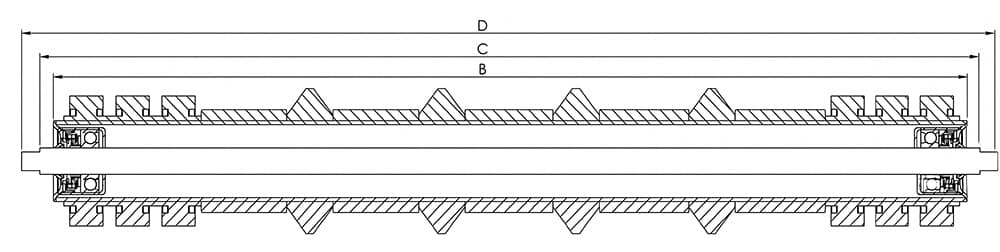

Return disc arrangement

Return disc arrangement
Belt width (B)	Tube Ø D	Rubber outer diameter	Disc dimension	Spacer bush dimension	Number of discs	Number of spacer bushes	B (mm)
400	60	89	608935	607050	6	5	500
		108	6010835	607050	6	5
		133	6013335	607050	6	55
500		89	608935	607050	7	6	600
		108	6010835	607050	7	6
		133	6013335	607050	7	6
	89	133	8913335	8910050	7	6
650	60	89	608935	607075	7	6	750
		108	6010835	607075	7	6
		133	6013335	607075	7	6
	89	133	8913335	8910075	7	6
	89	159	8915935	8910075	7	6
800	60	89	608935	607075	9	8	950
		108	6010835	607075	9	8
		133	6013335	607075	9	8
	89	133	8913335	8910075	9	8
	89	159	8915935	8910075	9	8
	108	159	10815935	10812075	9	8
1000	60	108	6010835	607075	11	10	1150
	60	133	6013335	607075	11	10
	89	133	8913335	8910075	11	10
	89	159	8915935	8910075	11	10
	108	159	10815935	10812075	11	10
1200	60	108	6010835	607075	13	12	1400
	60	133	6013335	607075	13	12
	89	133	8913335	8910075	13	12
	89	159	8915935	8910075	13	12
	108	159	10815935	10812075	13	12

Standard DIN 22112-2
