Roller bearing housings

The catalog lists flanged KRTE and plain KRTD bearing housings with bearing sizes, dimensions, codes, and weights.

Products

Bearing

Technical family of catalog-listed roller bearing housings.

Bearing

Bearing

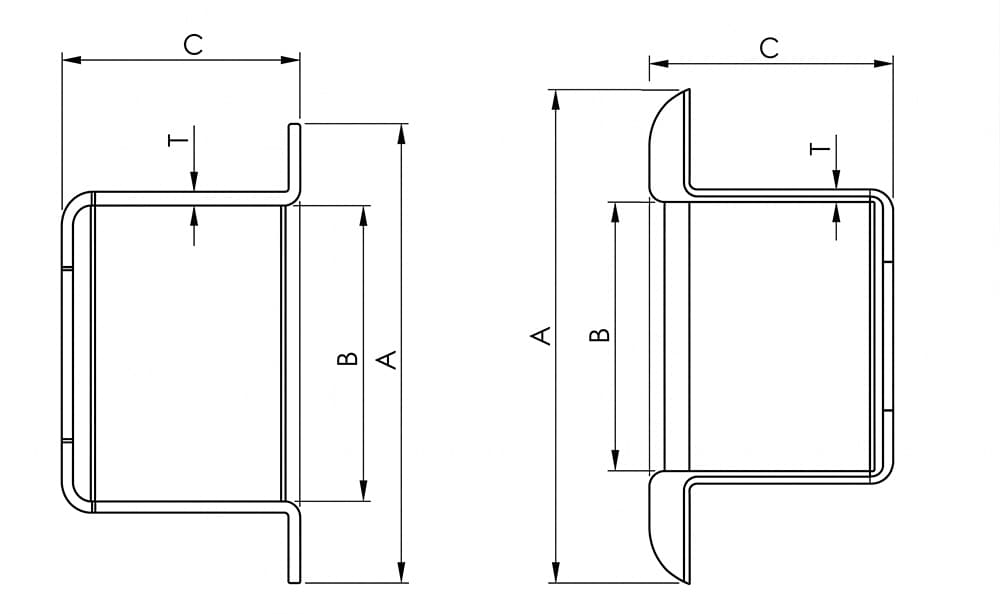

Tube Ø D	Bearing size	Type	Code	ØA	ØB	T	C	Weight (g)
76 mm	6204 (20*47) mm	ETEKLİ / FLANGED	KRTE 076/24	72	47	2	38	165
89 mm	6204 (20*47) mm	ETEKLİ / FLANGED	KRTE 089/24	85	47	2	38	180
102 mm	6204 (20*47) mm	ETEKLİ / FLANGED	KRTE 102/24	98	47	2	38	202
60 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 060/24	57	47	2	50	130
76 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 076/24	72	47	2	50	150
89 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 089/24	85	47	2	50	171
108 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 108/24	104	47	2	50	200
60 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 060/34	57	47	3	50	135
76 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 076/34	72	47	3	50	235
89 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 089/34	85	47	3	50	263
102 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 102/34	98	47	3	50	280
108 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 108/34	104	47	3	50	331
114 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 114/34	110	47	3	50	360
127 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 127/34	124	47	3	50	400
133 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 133/34	127	47	3	50	437
159 mm	6204 (20*47) mm	DÜZ / PLAIN	KRTD 159/34	154	47	3	50	540
76 mm	6205 (25*52) mm	DÜZ / PLAIN	KRTD 076/35	72	52	3	50	235
89 mm	6205 (25*52) mm	DÜZ / PLAIN	KRTD 089/35	85	52	3	50	265
102 mm	6205 (25*52) mm	DÜZ / PLAIN	KRTD 102/35	98	52	3	50	320
108 mm	6205 (25*52) mm	DÜZ / PLAIN	KRTD 108/35	104	52	3	50	350
114 mm	6205 (25*52) mm	DÜZ / PLAIN	KRTD 114/35	110	52	3	50	370
127 mm	6205 (25*52) mm	DÜZ / PLAIN	KRTD 127/35	124	52	3	50	420
133 mm	6205 (25*52) mm	DÜZ / PLAIN	KRTD 133/35	127	52	3	50	480
159 mm	6205 (25*52) mm	DÜZ / PLAIN	KRTD 159/35	154	52	3	50	560
89 mm	6206 (30*62) mm	DÜZ / PLAIN	KRTD 089/36	85	62	3	50	297
108 mm	6206 (30*62) mm	DÜZ / PLAIN	KRTD 108/36	104	62	3	50	380
114 mm	6206 (30*62) mm	DÜZ / PLAIN	KRTD 114/36	110	62	3	50	380
127 mm	6206 (30*62) mm	DÜZ / PLAIN	KRTD 127/36	124	62	3	50	410
133 mm	6206 (30*62) mm	DÜZ / PLAIN	KRTD 133/36	127	62	3	50	520
159 mm	6206 (30*62) mm	DÜZ / PLAIN	KRTD 159/36	154	62	3	50	630
