Impact rollers

Impact rollers are installed at conveyor loading zones and use concentric rubber rings arranged side by side for cushioning.

Products

Impact roller dimensions

A configuration-oriented impact-roller category for loading zones.

Configurations

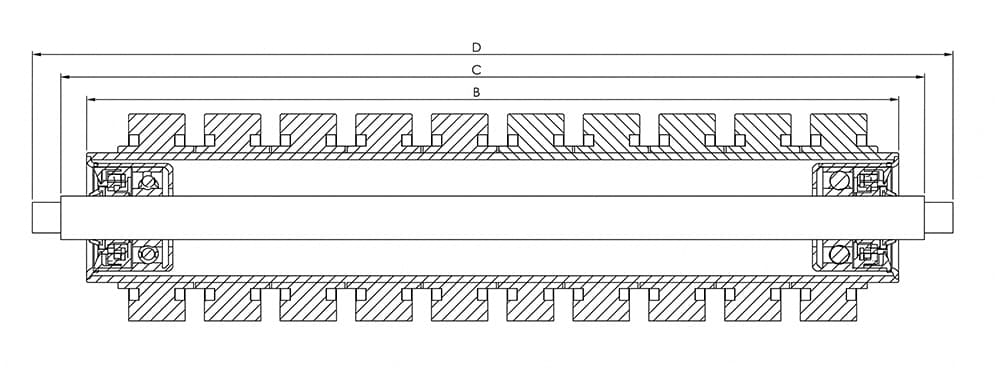

KRT impact roller

KRT impact roller
Disc dimension	400	500	650	800	1000	1200	1400	1600	1800
A	400	500	650	800	1000	1200	1400	1600	1800
B	165	200	250	315	380	465	530	600	670
C	173	208	258	323	388	473	538	608	678
D	191	226	276	341	406	491	562	626/632	702

Standard DIN 22112-2

Impact disc dimensions

Impact disc dimensions
Disc dimension	Ø D	Ø D1	Number of rubber discs400	Number of rubber discs500	Number of rubber discs650	Number of rubber discs800	Number of rubber discs1000	Number of rubber discs1200	Number of rubber discs1400	Number of rubber discs1600	Number of rubber discs1800
60x89x35	60	89	4	5	7	8	10	13	-	-	-
6010835	60	108	4	5	7	8	10	13	-	-	-
60x114x35	60	114	4	5	7	8	10	13	-	-	-
60x120x35	60	120	4	5	7	8	10	13	-	-	-
60x133x35	60	133	4	5	7	8	10	13	-	-	-
89x114x35	89	114	4	5	7	8	10	13	14	-	-
89x133x35	89	133	4	5	7	8	10	13	14	-	-
89x159x35	89	159	4	5	7	8	10	13	14	-	-
108x159x35	108	159	4	5	7	8	10	13	14	16	18

Standard DIN 22112-2

Technical reference

Download the current PDF catalog for drawings, dimensions and product reference.

Engineering support

Share your belt width, material and operating conditions. Our team will help identify the right Kırtaş solution.
