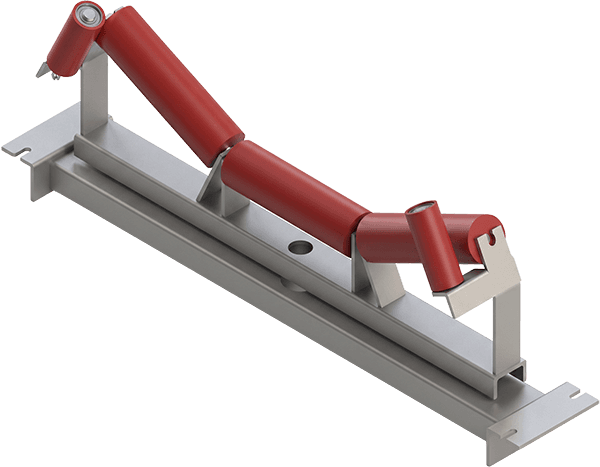

KRT N3Y idler frame

Upper Carrying Guide Frame. DIN 22112-2; compatible with Ø60, Ø89, Ø108, Ø133 and Ø159 mm rollers, 20 mm shaft and SW 14x9 mm wrench head. Industrial coating; 2° tilt in the direction of operation.

Idler frames

Configurations

Configurations
Technical data
DIN	DIN 22112-2
Ø	Ø60 — 89 — 108 — 133 — 159 mm
Shaft	20 mm
SW	SW 14x9 mm
Protection	Industrial Coating
Tilt	2°

Technical data

Technical data

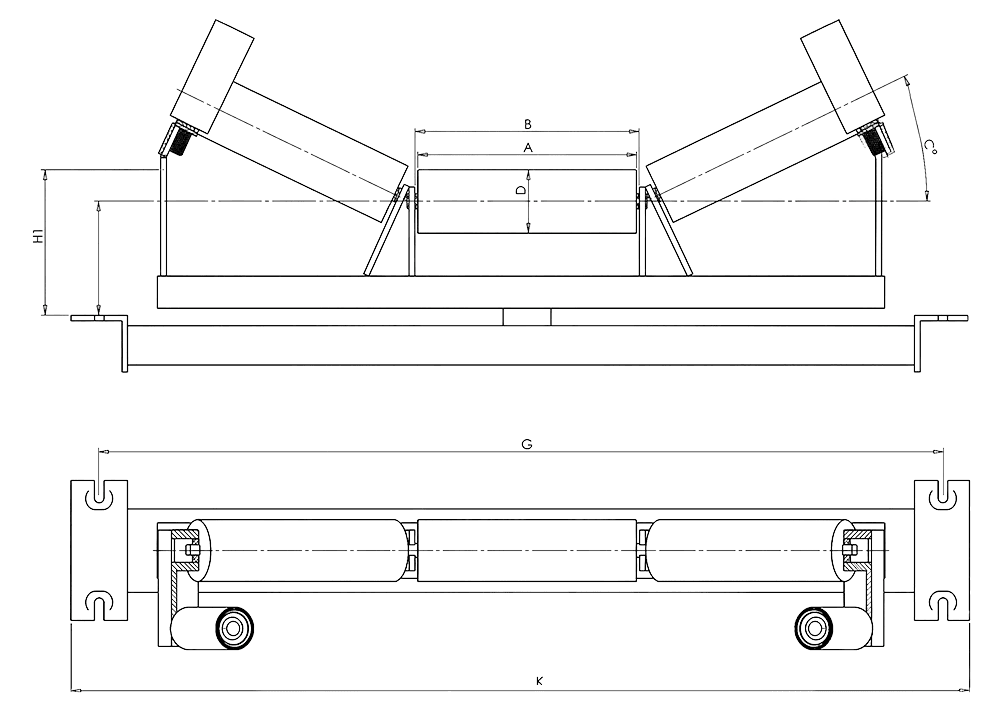

Belt	Ø	A	B	K	G	H1	H
400	60	165	173	640	700	75	120
	89	165	173	640	700	75	120
	108	165	173	640	700	85	130
500	60	315	323	740	800	75	120
	89	315	323	740	800	75	120
	108	315	323	740	800	85	130
650	60	380	388	890	950	75	120
	89	380	388	890	950	75	120
	108	380	388	890	950	100	145
800	60	465	473	1090	1150	75	120
	89	465	473	1090	1150	75	120
	108	465	473	1090	1150	100	145
1000	89	600	608	1290	1350	75	120
	108	600	608	1290	1350	100	145
	133	600	608	1290	1350	100	150
1200	89	465	473	1540	1600	75	125
	108	465	473	1540	1600	85	135
	133	465	473	1540	1600	100	150
	159	465	473	1540	1600	130	180
1400	108	530	538	1740	1800	85	135
	133	530	538	1740	1800	100	150
	159	530	538	1740	1800	130	180
1600	133	600	608	1940	2000	100	150
1600	159	600	608	1940	2000	130	180
