Guide rollers

Guide rollers are installed along the sides of the belt to ensure proper belt alignment and can be manufactured to the required diameter and length.

Products

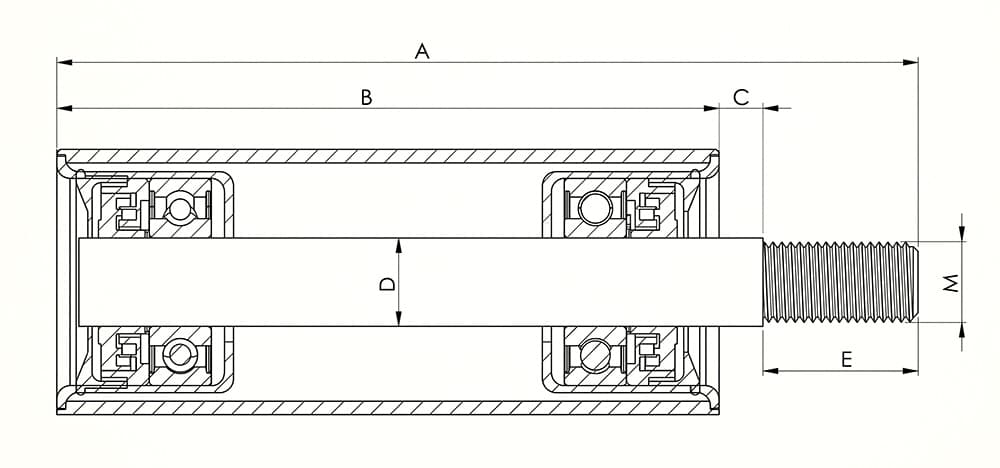

Guide roller dimensions

A configuration-oriented guide-roller category for belt alignment.

Guide roller

Guide roller
D Ø	B	A	Shaft diameter	M	E	C	Wrench size	Bearing
60	155	100	20	16	40	10	17	6204
60	165	120	20	16	40	10	17	6204
89	155	100	20	16	40	10	17	6207
89	165	120	20	16	40	10	17	6204
108	165	120	20	16	40	10	17	6204
60	155	100	25	20	40	10	20	6205
60	165	120	25	20	40	10	20	6205
89	155	100	25	20	40	10	20	6205
89	165	120	25	20	40	10	20	6205
108	165	120	25	20	40	10	20	6205
89	165	120	30	24	40	10	26	6206
108	165	120	30	24	40	10	26	6206
137	190	90	25	24	90	10	-	6205
80	173	105	25	20	60	8	-	6205

Dual system arrangement

Dual system arrangement
Belt width (B)	Tube Ø D	Rubber outer diameter	Disc dimension	Impact-type discs	Return-type discs	B (mm)
650	60	108	6010835	3	2	380
	60	133	6013335	3	2
	89	133	8913335	3	2
800	60	108	6010835	3	3	465
	60	133	6013335	3	3
	89	133	8913335	3	3
	89	159	8915935	3	3
	108	159	10815935	3	3
1000	60	108	6010835	4	4	600
	60	133	6013335	4	4
	89	133	8913335	4	4
	89	159	8915935	4	4
	108	159	10815935	4	4
1200	60	108	6010835	4	4	700
	60	133	6013335	4	4
	89	133	8913335	4	4
	89	159	8915935	4	4
	108	159	10815935	4	4
1400	89	133	8913335	4	5	800
	89	159	8915935	4	5
	108	159	10815935	4	5
1600	89	133	8913335	4	6	900
	89	159	8915935	4	6
	108	159	10815935	4	6
1800	89	133	8913335	4	7	1000
	89	159	8915935	4	7
	108	159	10815935	4	7
2000	89	133	8913335	4	8	1100
	89	159	8915935	4	8
	108	159	10815935	4	8

Standard DIN 22112-2

Technical reference

Download the current PDF catalog for drawings, dimensions and product reference.

Engineering support

Share your belt width, material and operating conditions. Our team will help identify the right Kırtaş solution.
