Conveyor drums

The catalog specifies St 37.2 or St 52 steel plate, DIN 2448 seamless tubes, a precision 1° taper, Ø 190 mm to Ø 1400 mm production on request, and cited lagging and shaft options.

Products

Technical data

Technical family for conveyor drum construction and options.

Technical data

1. Shell Construction: Our drum shells are manufactured from St 37.2 or St 52 grade steel plates, depending on the diameter, or from DIN 2448 standard seamless steel tubes. In order to prevent axial belt drift, the drum surfaces are precision-machined with a 1° taper. Upon request, we can manufacture drums in a wide diameter range from Ø 190 mm to Ø 1400 mm.

2. High-Performance Coverings: For maximum grip in drive units, hot-vulcanized rubber lagging with a hardness of 65 +/- 5 Shore is applied as standard.

3. As an alternative, we also offer industrial ceramic lagging, whose diamond-hard structure provides a service life of up to 10 years. Ceramic surfaces eliminate slippage and belt wear, while significantly improving overall system efficiency.

4. Precision Shafts and Connection Assemblies: Our shafts, manufactured from C1050 and C4140 grade steel, are mounted after full surface machining. The connection between the shaft and the shell is achieved by means of high-strength taper-lock systems (locking bushes) in the range of Ø 40 - Ø 230 mm, ensuring maximum torque transmission.

5. Quality and Protection: All of our products are protected against corrosion by means of industrial paint coatings and protective oils. In addition to the static balancing process applied as standard, we also offer optional dynamic balancing for high-speed systems.

Technical data

Conveyor drums

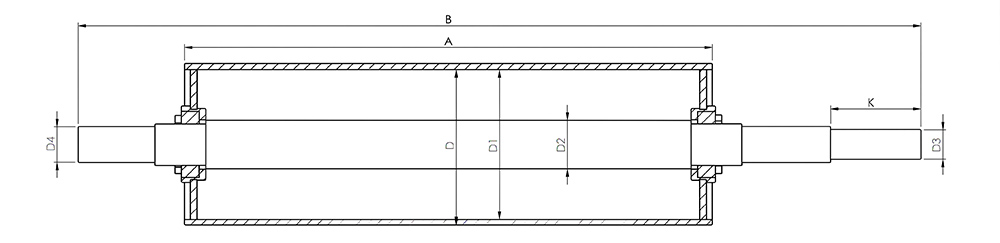

Technical data 1

Technical data 1
Belt width (B)	A	D	B	D4	D2	D3	K	G (kg)	Bearing
300	400	215	790	50	60	45	110	46.4	SN 511
	400	240	790	50	60	45	110	49.8	SN 511
	400	270	790	50	60	45	110	56.4	SN 511
	400	320	830	60	70	55	120	73.6	SN 513
400	500	215	840	40	50	35	80	45.5	SN 509
	500	240	890	50	60	45	110	57.2	SN 511
	500	320	930	60	70	55	120	84.2	SN 513
	500	400	930	60	70	55	120	109.4	SN 513
500	600	240	990	50	60	45	110	65	SN 511
	600	270	1030	60	70	55	120	86.1	SN 513
	600	320	1070	70	80	65	140	110.4	SN 516
	600	400	1120	80	90	75	140	154.4	SN 518
	600	500	1170	90	100	80	160	214.3	SN 520
650	750	320	1140	50	60	45	110	96.9	SN 511
	750	400	1180	60	70	55	120	145	SN 513
	750	500	1220	70	80	65	140	197.1	SN 516
	750	500	1270	80	90	75	140	212.9	SN 518
	750	630	1320	90	100	85	160	307.5	SN 520
	750	800	1350	100	110	95	160	441.9	SN 522
800	950	400	1340	50	60	45	110	155.4	SN 511
	950	400	1380	60	70	55	120	171.8	SN 513
	950	500	1420	70	80	65	140	213.1	SN 516
	950	500	1470	80	90	75	140	249.1	SN 518
	950	630	1520	90	100	85	160	360.2	SN 520
	950	630	1550	100	110	95	160	395.5	SN 522
	950	800	1590	110	120	105	180	538.5	SN 524
	950	1000	1650	125	140	110	200	767.6	SN 528
1000	1150	400	1620	70	80	65	140	219.3	SN 516
	1150	400	1670	80	90	75	140	239.4	SN 518
	1150	500	1720	90	100	85	160	307.3	SN 520
	1150	500	1750	100	110	95	160	340.4	SN 522
	1150	630	1790	110	120	100	180	479	SN 524
	1150	800	1850	125	140	110	200	667.1	SN 528
	1150	1000	1900	135	150	120	220	910.3	SN 530
	1150	1250	1930	140	160	130	220	1326.7	SN 532

Technical data

Conveyor drums

Technical data 2

Technical data 2
Belt width (B)	A	D	B	D4	D2	D3	K	G (kg)	Bearing
1200	1400	500	1920	80	90	75	140	326.7	SN 518
	1400	500	1970	90	100	85	160	353.1	SN 520
	1400	630	2000	100	110	95	160	515.8	SN 522
	1400	630	2040	110	120	105	180	549	SN 524
	1400	800	2100	125	140	110	200	763	SN 528
	1400	1000	2150	135	150	125	220	1039	SN 530
	1400	1000	2180	140	160	130	220	1132	SN 532
	1400	1250	2270	160	180	140	240	1,541.0	SN 534
1400	1600	500	2120	80	90	75	140	557.8	SN 518
	1600	500	2170	90	100	85	160	585.4	SN 520
	1600	630	2200	100	110	95	160	746.7	SN 522
	1600	630	2240	110	120	105	180	780.8	SN 524
	1600	800	2300	125	140	110	200	1,155.5	SN 528
	1600	800	2350	135	150	125	220	1,201.8	SN 530
	1600	1000	2380	140	160	130	220	1,513.5	SN 532
	1600	1250	2470	160	180	140	240	2,039.9	SN 534
1600	1800	500	2320	80	90	75	140	657.4	SN 518
	1800	500	2370	90	100	85	160	687.3	SN 520
	1800	630	2400	100	110	95	160	873.8	SN 522
	1800	630	2440	110	120	105	180	910.7	SN 524
	1800	800	2500	125	140	110	200	1,232.7	SN 528
	1800	1000	2550	135	150	125	220	1,561.0	SN 530
	1800	1250	2580	140	160	130	220	2,112.0	SN 532
	1800	1250	2670	160	180	140	240	2,261.9	SN 534
1800	2000	500	2520	80	90	75	140	719.3	SN 518
	2000	500	2570	90	100	85	160	751.6	SN 520
	2000	630	2600	100	110	95	160	953.5	SN 522
	2000	630	2640	110	120	105	180	993.3	SN 524
	2000	800	2700	125	140	110	200	1,340.4	SN 528
	2000	800	2750	135	150	125	220	1,393.9	SN 530
	2000	1000	2750	135	150	125	220	1,692.5	SN 530
	2000	1000	2780	140	160	130	220	1,746.1	SN 532
	2000	1250	2780	140	160	130	220	2,285.7	SN 532
	2000	1250	2870	160	180	140	240	2,404.1	SN 534
2000	2200	500	2770	90	100	85	160	815.9	SN 520
	2200	630	2800	100	110	95	160	1,033.2	SN 522
	2200	630	2840	110	120	105	180	1,075.9	SN 524
	2200	800	2900	125	140	110	200	1,435.4	SN 528
	2200	1000	2950	135	150	125	220	1,928.9	SN 530
	2200	1250	2980	140	160	130	220	2,459.4	SN 532
	2200	1250	3070	160	180	140	240	2,586.2	SN 534

Technical data

Conveyor drums

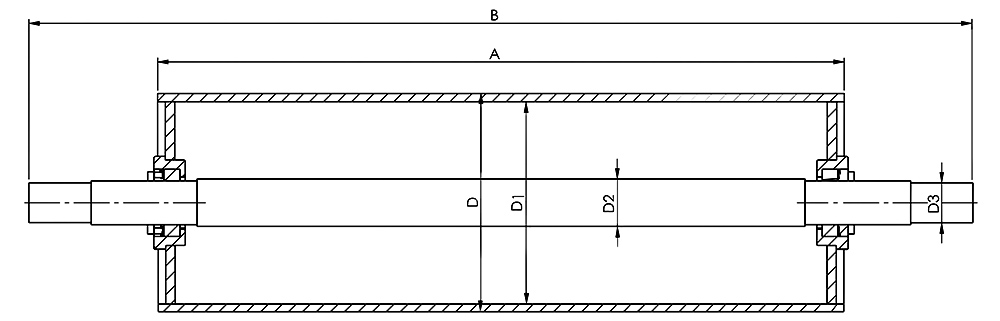

Technical data 3

Technical data 3
Belt width (B)	A	D	B	D3	D2	G (kg)	Bearing
300	400	190	690	40	50	35	UCT 208
	400	215	690	40	50	39	UCT 208
	400	240	690	40	50	42	UCT 208
	400	270	695	50	60	55	UCT 210
400	500	190	790	40	50	41	UCT 208
	500	215	790	40	50	45	UCT 208
	500	240	790	40	50	49	UCT 208
	500	270	795	50	60	64	UCT 210
	500	320	795	50	60	72	UCT 210
500	600	240	920	40	50	56	UCT 208
	600	270	925	50	60	72	UCT 210
	600	320	980	60	70	93	SNH 513
	600	400	980	60	70	122	SNH 513
	600	500	990	70	80	166	SNH 516
650	750	270	1085	50	60	85	UCT 210
	750	320	1140	60	70	109	SNH 513
	750	400	1150	70	80	158	SNH 516
	750	500	1170	80	90	207	SNH 518
	750	630	1190	90	100	298	SNH 520
800	950	270	1285	50	60	101	UCT 210
	950	320	1340	60	70	128	SNH 513
	950	400	1350	70	80	187	SNH 516
	950	500	1370	80	90	243	SNH 518
	950	630	1390	90	100	351	SNH 520
1000	1150	270	1485	50	60	116	UCT 210
	1150	320	1540	60	70	147	SNH 513
	1150	400	1550	70	80	215	SNH 516
	1150	500	1570	80	90	278	SNH 518
	1150	630	1590	90	100	402	SNH 520
	1150	800	1605	100	110	568	SNH 522
	1150	1000	1615	110	120	795	SNH 524

Technical data

Conveyor drums

Technical data 4

Technical data 4
Belt width (B)	A	D	B	D3	D2	G (kg)	Bearing
1200	1400	400	1800	60	70	227	SNH 513
	1400	400	1810	70	80	249	SNH 516
	1400	500	1830	80	90	320	SNH 518
	1400	630	1850	90	100	465	SNH 520
	1400	800	1865	100	110	652	SNH 522
	1400	1000	1895	125	130	943	SNH 528
1400	1600	500	2010	80	90	432	SNH 518
	1600	500	2030	90	100	456	SNH 520
	1600	630	2045	100	110	578	SNH 522
	1600	630	2055	110	120	616	SNH 524
	1600	800	2055	110	120	859	SNH 524
	1600	800	2075	125	130	892	SNH 528
	1600	1000	2075	125	130	1,109	SNH 528
	1600	1000	2090	135	150	1,182	SNH 530
1600	1800	500	2300	90	100	539	SNH 520
	1800	630	2315	100	110	715	SNH 522
	1800	630	2325	110	120	748	SNH 524
	1800	800	2325	110	120	945	SNH 524
	1800	800	2345	125	130	983	SNH 528
	1800	1000	2345	125	130	1,215	SNH 528
	1800	1000	2360	135	150	1,297	SNH 530
1800	2000	500	2500	90	100	587	SNH 520
	2000	630	2515	100	110	778	SNH 522
	2000	800	2525	110	120	1,016	SNH 524
	2000	800	2545	125	130	1,056	SNH 528
	2000	1000	2525	110	120	1,273	SNH 524
	2000	1000	2560	135	150	1,313	SNH 530
2000	2200	500	2715	100	110	697	SNH 522
	2200	630	2725	110	120	880	SNH 524
	2200	630	2745	125	130	924	SNH 528
	2200	800	2725	110	120	1,095	SNH 524
	2200	800	2745	125	130	1,138	SNH 528
	2200	1000	2745	125	130	1,569	SNH 528
	2200	1000	2760	135	150	1,665	SNH 530
